Beschreibung
Specifications
| Technical data | Information | ||
|---|---|---|---|
|
Brand
|
Mean Well
|
Commodity
|
8504409090
|
|
Item number
|
GS90A24-P1M
|
Warranty pack
|
24 Months Bring-In
|
|
Series
|
GS90
|
RoHS
|
Compliant
|
|
Description
|

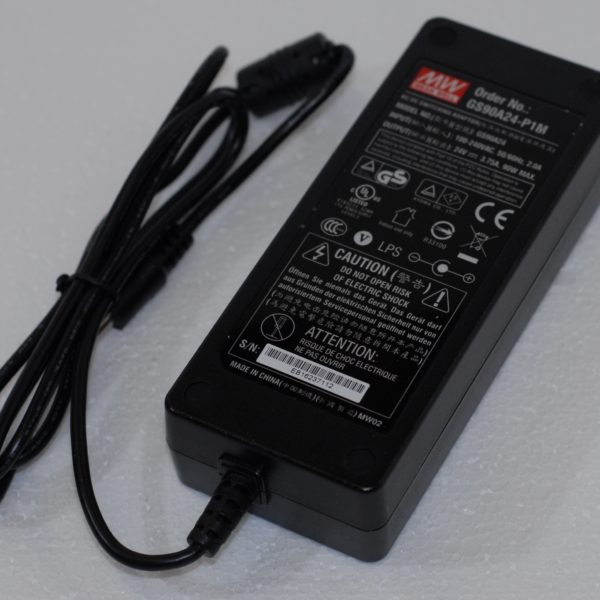

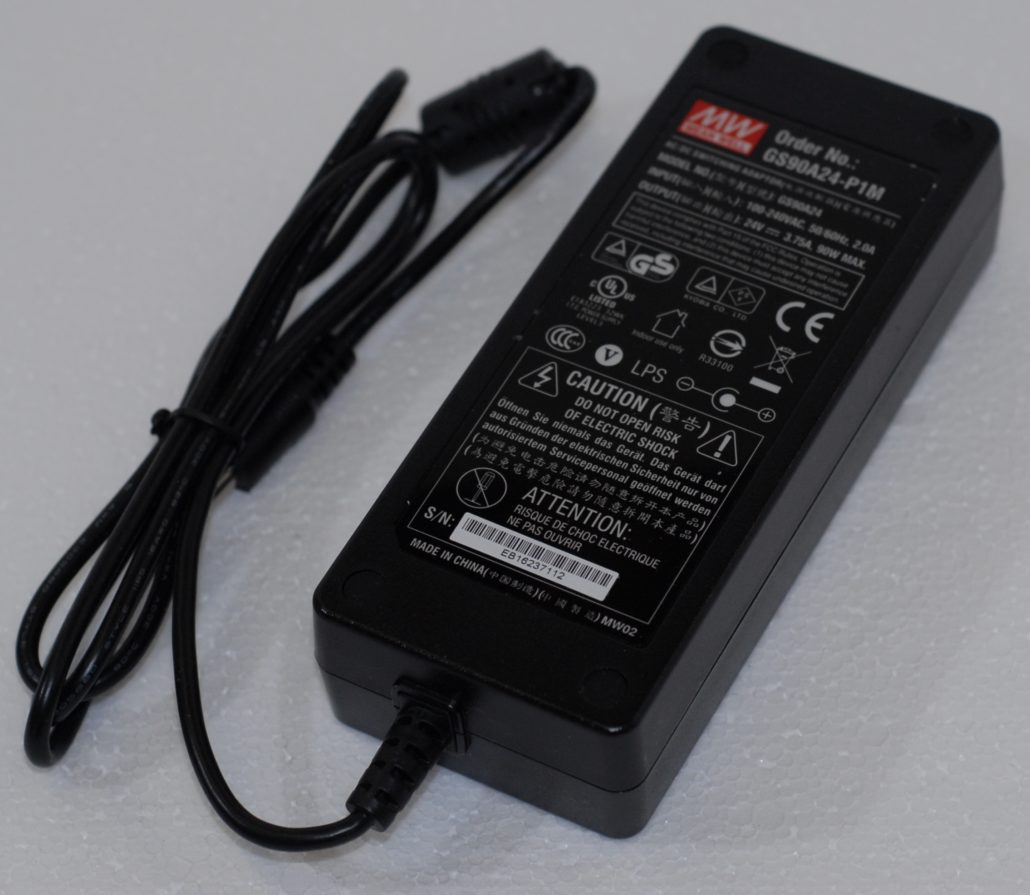

AC-DC Industrial desktop adaptor with 3 pin IEC320-C14 input socket; Output 24VDC at 3.75A with P1M tuning fork plug OD 5.5mm; ID 2.5mm; Length 9.5m; Class I; GS90A24-P1M is succeeded by GST90A24-P1M.
|
Packing quantity
|
30
|
|
Application
|
ITE EN/UL/IEC 60950
|
Net weight (gram)
|
428
|
|
Technology
|
AC/DC
|
Alternative item number
|
GST90A24-P1M
|
|
Power Format
|
Desktop
|
Life cycle status
|
Discontinued
|
|
Output Power (W)
|
90
|
||
|
Output Voltage (V)
|
24
|
||
|
Output Current (A)
|
3.75
|
||
|
Input Voltage (V)
|
110/230 universal input
90 – 264
|
||
|
IP Rating
|
No IP assigned
|
||
|
Width (mm)
|
60
|
||
|
Height (mm)
|
32
|
||
|
Depth (mm)
|
145
|
||
|
Dimming Technology
|
No Dimming
|
||
AC-DC Industrial desktop adaptor with 3 pin IEC320-C14 input socket; Output 24VDC at 3.75A with P1M tuning fork plug OD 5.5mm; ID 2.5mm; Length 9.5m; Class I;
