Beschreibung
Specifications
| Technical data | Information | ||
|---|---|---|---|
|
Brand
|
Mean Well
|
Commodity
|
8504409090
|
|
Item number
|
GS60A24-P1J
|
Warranty pack
|
24 Months Bring-In
|
|
Series
|
GS60
|
RoHS
|
Compliant
|
|
Description
|

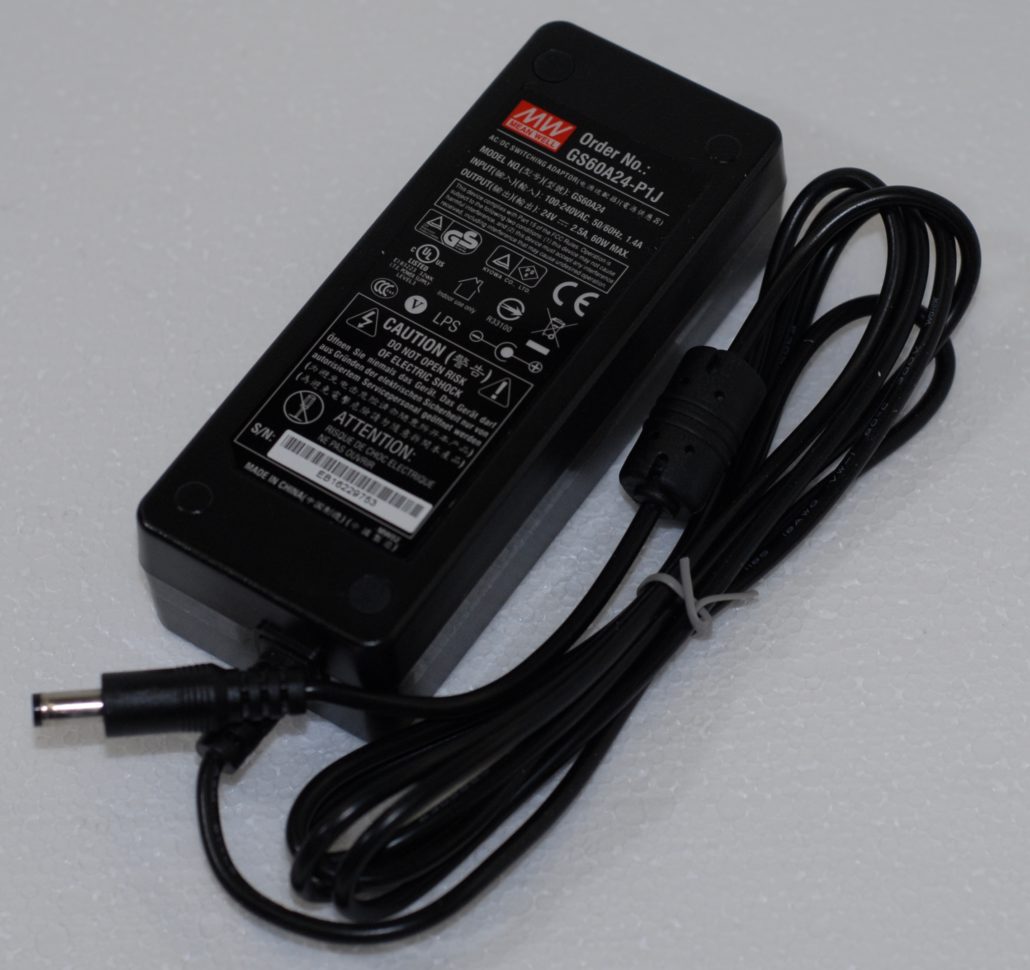

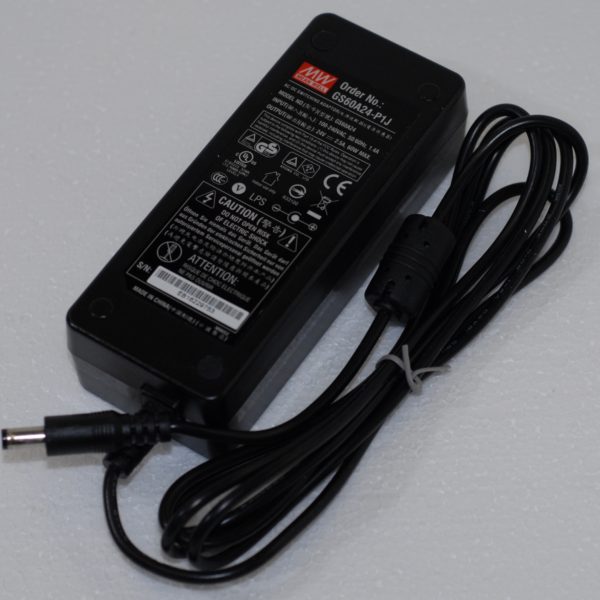

AC-DC Industrial desktop adaptor with 3 pin IEC320-C14 input socket; Output 24VDC at 2.5A with P1J tuning fork plug OD 5.5mm; ID 2.1mm; Length 11mm; Class I; GS60A24-P1J is succeeded by GST60A24-P1J.
|
Packing quantity
|
40
|
|
Application
|
ITE EN/UL/IEC 60950
|
Net weight (gram)
|
328
|
|
Technology
|
AC/DC
|
Alternative item number
|
GST60A24-P1J
|
|
Power Format
|
Desktop
|
Life cycle status
|
Discontinued
|
|
Output Power (W)
|
60
|
||
|
Output Voltage (V)
|
24
|
||
|
Output Current (A)
|
2.5
|
||
|
Input Voltage (V)
|
110/230 universal input
90 – 264
|
||
|
IP Rating
|
No IP assigned
|
||
|
Width (mm)
|
50
|
||
|
Height (mm)
|
31.5
|
||
|
Depth (mm)
|
125
|
||
|
Dimming Technology
|
No Dimming
|
||
AC-DC Industrial desktop adaptor with 3 pin IEC320-C14 input socket; Output 24VDC at 2.5A with P1J tuning fork plug OD 5.5mm; ID 2.1mm; Length 11mm; Class I;
